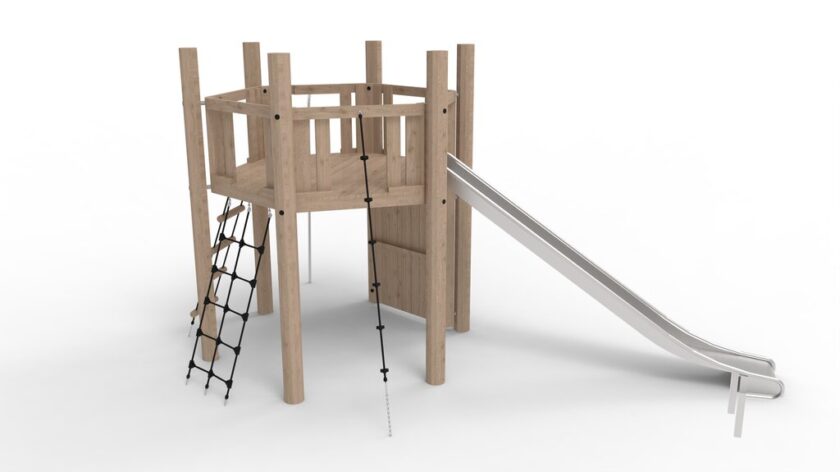

Climbing Tower System 6 with Floor and Slide
Climbing Tower System 6 with Floor and Slide
Climbing Tower System 6 with Floor and Slide
Download
Rendering (.jpg or .png)2D (.dwg)Installation instructions (.pdf)Product measurements
Length:5,9 m
Width:3,5 m
Height:3 m
Fall height:1,8 m
Fall area:40 m2
Minimum area (LxDxH):10,3 x7 x3 m m
Target group
Age:5+
Number of users:8
Installation
Assembly time:30 hours
Number of installers:2
Concrete:0,304 m3
Measurement - largest part:300 x 50 x 220 cm
Weight - heaviest part:146 kg
Smart Robinia:Yes
Installation principle for this product
Inst.p.No.19 - Fundament.pdfInst.p.No.29 - M12.pdfInst.p.No.52A - Rutschebane.pdfInst.p.No.27 - Klatresten.pdfInst.p.No.78 - Øjebolt M10x70mm.pdfInst.p.No.108 - Forankring af tov - net.pdfInst.p.No.119 - Fundering af rutschebane.pdfInst.p.No.63A - Øjebolt 10x90mm.pdf
Transport size ((no.) indicates colli)
Length:240 cm
Width:125 cm
Height:180 cm
Weight:975 kg
| Product No. | Customer Product No. | Color: | Anchoring: | Gross Price | Net Price | ||
|---|---|---|---|---|---|---|---|
| LE20417U | Uncolored | Robinia in ground | |||||
| LE20417 | Chestnut | Robinia in ground |
Primary materials
Robinia, Heartwood pine, Plywood, Taifun, Stainless steel
Primary materials
Robinia, Heartwood pine, Plywood, Taifun, Stainless steel
